Airports for X-Plane

Split

Airport details

CountryCroatia
StateSplit-Dalmatia County
RegionLD
AirspaceZagreb Ctr
MunicipalityGrad Kaštela
Elevation79ft (24m)
TimezoneGMT +1
Coordinates43.53894, 16.29796
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLDSP
IATA codeSPU
FAA coden/a

Communication

Split ATIS125.300
Split Tower124.675
Split Tower118.100
Split Approach121.200
Split Approach128.675
Split Approach120.550
Split Approach120.875

Approach frequencies

ILS-cat-IRW05110.518.00mi
3° GSRW05110.518.00mi
Nearby Points of Interest:
Splitska sinagoga
-
Historical Complex of Split with the Palace of Diocletian
-
Crljivica

Runway info

Runway 05 / 23
 length2553m (8376ft)
 bearing61° / 241°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 160m (525ft)
 blast zone30m (98ft) / 250m (820ft)

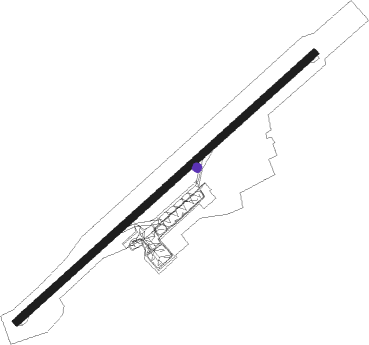

Airport layout - taxiway location 05|23


Taxiway locations

 05|23  APRON
Parking locations

 1  10  11  12  14  15  16  2
 3  4  5  6  7  8  9  A
 B

Nearby beacons

codeidentifierdistbearingfrequency
SPLSPLIT VOR/DME2.5171°115.70
TRITROGIR NDB4.1241°378
DVNDRVENIK NDB8.7239°418
BRCDME20.9128°115.45
HUMHUMAC (BRAC) NDB22.4123°412
VRLVRLIKA NDB24.419°283
ZRAKAKMA NDB44.3300°330
ZDAZADAR VOR/DME52.4301°108.60
ZKZADAR NDB52.4301°348

Departure and arrival routes

Transition altitude9500ft
Transition level10500ft
SID end pointsdistanceoutbound heading
RW05
 SIRM8D, SIRM1W37mi1°
 UNIP8D, UNIP1W31mi21°
 REMP2C, REMP1W26mi69°
 KENE8H, KENE1W, KENE7G29mi82°
 VELI6D, VELI1W44mi101°
 SIPA1W, SIPA5E42mi117°
 ORAK5C, ORAK1W72mi138°
 RILI3E58mi150°
 VELU1W, VELU2C53mi234°
 TORP7D, TORP1W82mi271°
 ZDA7K, ZDA1W52mi301°
RW23
 SIRM2E, SIRM1V37mi1°
 UNIP1V, UNIP1G31mi21°
 REMP1V, REMP4D26mi69°
 KENE1J29mi82°
 VELI8E44mi101°
 SIPA7D42mi117°
 ORAK7D72mi138°
 RILI5F58mi150°
 VELU2D, VELU1V53mi234°
 KEMI3A21mi239°
 TORP8E, TORP1V82mi271°
 ZDA1V, ZDA8P52mi301°

STAR starting pointsdistanceinbound heading
RW05
 VAPU2A, VAPU1Z55.866°
 TORP1Z, TORP4C, TORP4F81.591°
 OKLA1Z, OKLA4A, OKLA4B, OKLA4C22.6142°
 KENE1Z, KENE5B28.7262°
 VELI4A, VELI1Z44.1281°
 SIPA5G, SIPA1U41.6297°
 ORAK4A72.0318°
 RILI1Z, RILI3B57.5330°
RW23
 VAPU1Y55.866°
 TORP1Y, TORP2B81.591°
 OKLA1Y, OKLA3D22.6142°
 NUPS2Y40.6143°
 KENE1Y28.7262°
 VELI1Y44.1281°
 SIPA1J41.6297°
 HUM2B22.4303°
 RILI1Y57.5330°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05-YGOTRI (34°)GOTRI 4000ft
SP401 (7mi, 313°) 2800ft
RW05-YIRBUL (82°)IRBUL 4000ft
SP401 (7mi, 133°) 2800ft
RW05-YKEMIX (59°)KEMIX 3000ft
SP401 (7mi, 54°) 2800ft
 RNAVSP401 2800ft
DEXIS (5mi, 61°) 2800ft
SP402 (6mi, 61°) 1028ft
HUM (23mi, 116°) 5000ft
HUM (turn) 5000ft
RW05-ZGOTRI (34°)GOTRI 4000ft
SP401 (7mi, 313°) 2800ft
RW05-ZIRBUL (82°)IRBUL 4000ft
SP401 (7mi, 133°) 2800ft
RW05-ZKEMIX (59°)KEMIX 3000ft
SP401 (7mi, 54°) 2800ft
 RNAVSP401 2800ft
DEXIS (5mi, 61°) 2800ft
LDSP (9mi, 61°) 122ft
SP403 (turn)
HUM (22mi, 124°) 5000ft
HUM (turn) 5000ft
RW23-VEVUGA (351°)EVUGA 4000ft
LASUL (7mi, 303°) 4000ft
RW23-VIDNUM (56°)IDNUM 6000ft
LASUL (7mi, 106°) 4000ft
RW23-VLASUL (23°)LASUL 4000ft
 RNAVLASUL 4000ft
NURAT (8mi, 51°) 3000ft
RORKA (3mi, 51°) 2000ft
SP502 (10mi, 112°)
SP503 (13mi, 231°)
LASUL (10mi, 298°) 4000ft
LASUL (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
HUM2BHUMFIXright207 (27)°> 4000ft1.0min timed190
HUM2BLASULVHFright199 (19)°> 4000ftDME 4.0mi190
KENE1YLASULVHFright199 (19)°> 4000ftDME 4.0mi190
KENE1ZKEMIXVHFright222 (42)°> 3000ft1.0min timedICAO rules
KENE1ZMODMUVHFleft123 (303)°> 3500ft1.0min timed250
NUPS2YLASULVHFright199 (19)°> 4000ftDME 4.0mi190
OKLA1YLASULVHFright199 (19)°> 4000ftDME 4.0mi190
OKLA1ZKEMIXVHFright222 (42)°> 3000ft1.0min timedICAO rules
OKLA1ZOKROVVHFright281 (101)°> 3000ft1.0min timed250
OKLA3DLASULVHFright199 (19)°> 4000ftDME 4.0mi190
OKLA3DOKLAXVHFleft329 (149)°> 8000ft1.0min timed210
OKLA4AOKLAXVHFleft329 (149)°> 8000ft1.0min timed210
OKLA4BDVNFIXright233 (53)°> 2900ft1.0min timed210
OKLA4BOKLAXVHFleft329 (149)°> 8000ft1.0min timed210
OKLA4COKLAXVHFleft329 (149)°> 8000ft1.0min timed210
RILI1YLASULVHFright199 (19)°> 4000ftDME 4.0mi190
RILI1ZKEMIXVHFright222 (42)°> 3000ft1.0min timedICAO rules
RILI1ZMODMUVHFleft123 (303)°> 3500ft1.0min timed250
SAL1YLASULVHFright199 (19)°> 4000ftDME 4.0mi190
SAL1ZKEMIXVHFright222 (42)°> 3000ft1.0min timedICAO rules
SAL1ZOKROVVHFright281 (101)°> 3000ft1.0min timed250
SAL4SDVNFIXright233 (53)°> 2900ft1.0min timed210
SIPA1JLASULVHFright199 (19)°> 4000ftDME 4.0mi190
SIPA1UKEMIXVHFright222 (42)°> 3000ft1.0min timedICAO rules
SIPA1UMODMUVHFleft123 (303)°> 3500ft1.0min timed250
SPL2BLASULVHFright199 (19)°> 4000ftDME 4.0mi190
TORP1YLASULVHFright199 (19)°> 4000ftDME 4.0mi190
TORP1ZKEMIXVHFright222 (42)°> 3000ft1.0min timedICAO rules
TORP1ZOKROVVHFright281 (101)°> 3000ft1.0min timed250
TORP2BLASULVHFright199 (19)°> 4000ftDME 4.0mi190
TORP4CDVNFIXright233 (53)°> 2900ft1.0min timed210
VAPU1YLASULVHFright199 (19)°> 4000ftDME 4.0mi190
VAPU1ZKEMIXVHFright222 (42)°> 3000ft1.0min timedICAO rules
VAPU1ZOKROVVHFright281 (101)°> 3000ft1.0min timed250
VELI1YLASULVHFright199 (19)°> 4000ftDME 4.0mi190
VELI1ZKEMIXVHFright222 (42)°> 3000ft1.0min timedICAO rules
VELI1ZMODMUVHFleft123 (303)°> 3500ft1.0min timed250
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
